2-Phase 17HM(0.9º) hybrid stepper motor

Ask Lasest Price
Brand Name :	DK
Certification :	CE, ROHS, CCC.
Model Number :	17HM Series
Price :	CONFIRMED
Delivery Time :	CONFIRMED
Payment Terms :	T/T inadvance
Supply Ability :	500pcs/month

Add to Cart

Product Details
Company Profile

2-Phase 17HM(0.9º) hybrid stepper motor

hybrid stepper motor

Product Model:2-Phase 17HM(0.9º)

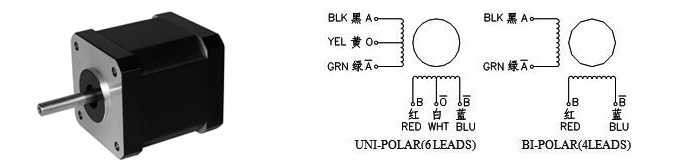

Wiring Diagram:

Electrical Specifications:

Series Model	Step Angle (°)	Motor Length (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.cm Min)	Detent Torque (N.cm Max)	Rotor Inertia (g.cm²)	Lead Wire (No.)	Motor Weight (g)
17HM0403	0.9	21	0.3	25	36	8	1.2	24	4	120
17HM2408	0.9	28	0.6	9	9	10	0.9	20	4	130
17HM3401	0.9	34	1.3	2.4	3.6	24	1.2	34	4	220
17HM3410	0.9	34	1.7	1.2	2.2	24	1.2	34	4	220
17HM3430	0.9	34	0.4	30	45	24	1.2	34	4	220
17HM3630	0.9	34	0.4	30	22	20	1.2	34	6	220
17HM3616	0.9	34	0.16	75	54	12	1.2	34	6	220
17HM4401	0.9	40	1.7	1.5	3.8	36	1.8	54	4	280
17HM4402	0.9	40	1.3	2.5	6.2	36	1.8	54	4	280
17HM4602	0.9	40	1.2	3.2	3.8	26	1.8	54	6	280
17HM4630	0.9	40	0.4	30	34	26	1.8	54	6	280
17HM8401	0.9	48	1.7	1.8	4.0	42	2.2	68	4	350
17HM8402	0.9	48	1.3	3.0	7.0	36	2.2	68	4	350
17HM8403	0.9	48	2.3	1.2	2.0	42	2.2	68	4	350

*Note: We can manufacture products according to customer’s requirements.

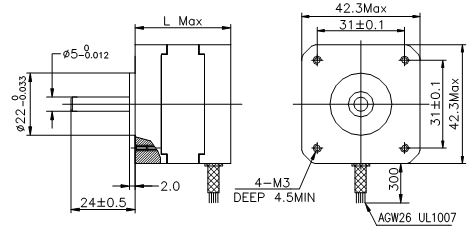

Dimensions: unit=mm Motor Length:

Series Model	Motor Length
17HM0XXX	21 mm
17HM2XXX	28 mm
17HM3XXX	34 mm
17HM4XXX	40 mm
17HM8XXX	48 mm
