2-Phase 23HS(1.8º) hybrid stepper motor

Ask Lasest Price
Brand Name :	DK
Certification :	CE, ROHS, CCC.
Model Number :	23HS Series
Price :	CONFIRMED
Delivery Time :	CONFIRMED
Payment Terms :	T/T inadvance
Supply Ability :	500pcs/month

Add to Cart

Product Details
Company Profile

2-Phase 23HS(1.8º) hybrid stepper motor

hybrid stepper motor

Product Model:2-Phase 23HS(1.8º)

Wiring Diagram:

Electrical Specifications:

Series Model	Step Angle (°)	Motor Length (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.m Min)	Detent Torque (N.cm Max)	Rotor Inertia (g.cm²)	Lead Wire (No.)	Motor Weight (g)
23HS0405	1.8	41	0.62	12	24	0.55	2.5	150	4	470
23HS0408	1.8	41	2.0	1.2	2.5	0.55	2.5	150	4	470
23HS4412	1.8	45	0.62	12	26	0.8	2.8	190	4	520
23HS4425	1.8	45	2.5	1.0	2.2	0.8	2.8	190	4	520
23HS5406	1.8	51	0.62	13	28	1.0	2.8	190	4	520
23HS5425	1.8	51	2.5	1.2	3.2	1.0	2.8	190	4	520
23HS6602	1.8	56	1.5	3.2	5.5	0.9	3.5	280	6	590
23HS6430	1.8	56	3.0	0.8	2.4	1.1	3.5	280	4	680
23HS6404	1.8	56	4.2	0.4	1.2	1.1	3.5	280	4	680
23HS7401	1.8	64	1.0	7.5	20	1.5	5.0	380	4	850
23HS7430	1.8	64	3.0	0.8	2.3	1.5	5.0	380	4	850
23HS7404	1.8	64	4.2	0.55	1.2	1.5	5.0	380	4	850
23HS8430	1.8	76	3.0	1.0	3.5	1.8	6.0	440	4	1050
23HS8404	1.8	76	4.2	0.6	1.8	1.8	6.0	440	4	1050
23HS1430	1.8	100	3.0	1.4	5.5	2.5	10	680	4	1250
23HS1404	1.8	100	4.2	0.8	3.0	2.5	10	680	4	1250
23HS2430	1.8	112	3.0	1.6	6.8	2.8	12	800	4	1400
23HS2404	1.8	112	4.2	0.9	3.8	2.5	12	800	4	1400

*Note: We can manufacture products according to customer’s requirements

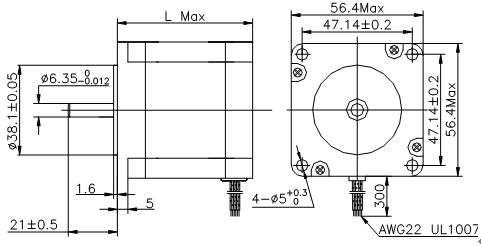

Dimensions: unit=mm Motor Length:

Series Model	Motor Length
23HS0XXX	41 mm
23HS4XXX	45 mm
23HS5XXX	51 mm
23HS6XXX	56 mm
23HS7XXX	64 mm
23HS8XXX	76 mm
23HS1XXX	100 mm
23HS2XXX	112 mm

Quality 2-Phase 23HS(1.8º) hybrid stepper motor for sale

2-Phase 23HS(1.8º) hybrid stepper motor
